A fused wire runs between the positive battery terminal to relay terminal 30.
Wiring up a light bar. If you are wiring up spot lights connect a plug to each light. Step 11 reconnecting the negative terminal. The load side of the cab switch goes to terminal 86.
Put the switch for your new lights in the on position and turn. Terminal 85 connects to a vehicle ground point. Wiring the led light bar in front of the vehicle makes it easy for you to view objects clearly while driving at night time.
I go though every step s. Https amzn to 33rf4mq used in this video auxbeam led light bar wiring harness. How to install a light bar.
Now you re on to your last step reconnect the negative terminal to your battery and you should be good to go. By implementing all the steps mentioned in this guide properly you would be able to wire a light bar without a relay. Https amzn to 2b41h1x used in this vi.

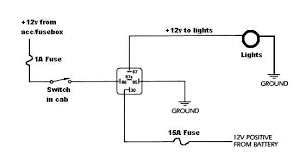

The second plug can be taped up out of the way or you could use this wire for an additional light bar. The positive wire from the light bar attaches to terminal 87 and the light bar s negative wire attaches to a vehicle ground.
